Narrow band multi channel receiver 70RX-S2

The UHF receiver 70RX-S2 was designed as follover of the reliable 70RX-S1 for all discerning applications of the wireless data- and analog signal communication and beats him in nearly all items. At the same time the case becomes 25% slimmer and the input voltage range was expanded.

The internal uC/synthesizer combination can now be programmed on two ways. Either with the well known 8bit parallel port with up to 256 predefined channels or new with serial programming (SPI) and up to 1000 channels with any raster down to 1KHz. On the same way you can readout the measured data for RSSI and Mute.

The 70RX-S2 is available for the frequency range from 250 to 550MHz with a maximum switching bandwith of about 5Mhz. The module has a remarkable selectivity, which allows its use in applications where several modules must be operated locally and on adjacent radio channels at the same time.

The excellent RF sensitivity offers a long distance signal transmission. In combination with our 10mW transmitter-modules 70TX-M2 or 70TX-S1 you can build a perfect radio system in simplex- or half-duplex mode. Together with our remote control unit FSM24 you can reach 2000 m and more at free sight.

The direct audio signal output doesn`t restrict its use for any kind of coding. Any type of recommendable signal can be used, even direct audio signals, e.g. speech. The 4th order butterworth filter eliminates noise- and disturb signals with high efficiency.

Features

  • Narrow band multi channel receiver
  • Up to 1000 channels
  • Very small size
  • Less current consumption
  • Data rate DC - 5kHz (up to 9600 Bd)
  • Suitable for analog and digital data
  • No licence required
  • Compliance to RED ( 2014/53/EU ), EN 300220
  • FCC and Canada approvals

Applications

  • Remote control systems
  • Data communication
  • Industrial applications
  • Telemetry systems
  • Alarms
  • Security Systems

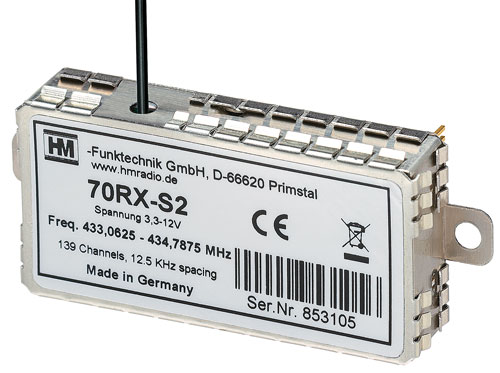

Receiver 70RX-S2 with whip antenna
Receiver 70RX-S2 antenna

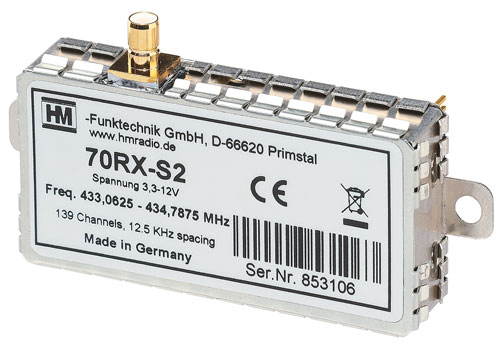

Receiver 70RX-S2 with SMB socket
Receiver 70RX-S2 socket
Receiver 70RX-S2 backview
Receiver 70RX-S2 backview

Specifications

Communication Simplex
Frequency range 433,0625 – 434,7875 MHz     ( 12,5 / 25 kHz spacing )
Optional frequency range 406 – 476 MHz    spacing on customer request
Number of channels 139 at ISM, else up to 256     with SPI programming up to 1000
Modulation FM narrow band     analog and digital
Receiver type Double Superhet
Sensitivity at least –121dBm for 12dB SINAD ( CCITT filtered )
Mirror rejection Typical 60 dB
Spurious Response Rejection Better than 75 dB
Blocking Better than 80 dB
Intermodulation Typical 55 dB
Selectivity 15 KHz channel bandwidth
NF-output 0.8VPP Inverted ( optional non-inverted )
Data rate DC – 5 kHz ( 9600 Baud )
Temperature range -25°C  -  +75°C     optional -40°C  -  +80°C with TCXO
Supply voltage 3.3 - 14V     max. 3.1 - 15V
Supply current < 23mA ( ± 2mA )
Startup Time < 10ms ( Power On )
Dimensions 49,2 x 24,9 x 9,7 mm   with lashes 60,0 x 24,9 x 9,7 mm
Weight 19g
Material stainless steel with M3 mounting lashes
Antenna λ/4 – whip antenna (Teflon)
Outputs Mute, RSSI
Approvals R&TTE ( EN300220 )     Europe( 433,0625 – 434,7875 MHz )
  FCC / CAN

Data sheets 70RX-S2 (multi channel)
