Narrow band single channel receiver 70RX-MP2

The 70RX-M2 is a high quality narrow band FM single channel radio receiver according to EN300220 and Part 15B with improved blocking behaviour. This significantly increases the immunity to interference from out-of-band interferers. In combination with our transmitter modules, radio systems with a very long range can be set up in simplex or half duplex operation.

The receiver is produced by default for the European ISM band at 433 / 434 MHz. We offer all available 139 channels from 433.0625 - 434.7875 MHz in a 12.5 kHz raster. The module is available for most of the worldwide used frequency bands in the 400 MHz range: 406 - 418 MHz, 418 - 428 MHz, 428 - 438 MHz, 438 - 448 MHz, 456 - 466 MHz and 466 - 476 MHz. Due to the wide range of our filters, very few variants are sufficient.

Optionally, frequencies in the range of 250 to 550 MHz are also possible. Please ask us for your desired frequency. If required, our service can re-program the frequency of the module at a later date without hardware changes in a range of up to +-3 MHz.

The signals Mute and RSSI are available for evaluating the reception quality. Determining the optimum reception place for stationary use is very easy.

The excellent RF sensitivity allows signal transmissions over very long distances. 10mW output power of 70TX-M1 or 70TX-S together with the remote control unit FSM24 is f.e. sufficient for a free field range of more than 2000 m. The receiver is also characterized by a very high selectivity, which allows the operation of many devices at the same place.

The direct audio signal output doesn`t restrict its use for any kind of coding. Any type of recommendable signal can be used, even analogue audio signals, e.g. speech. A Butterworth filter at the output eliminates noise- and interfering signals with high efficiency.


  • Narrow band single channel receiver
  • 1:1 substitute of 70RX-M2 (higher blocking)
  • Very small size
  • Less current consumption
  • Data rate DC - 5kHz (up to 9600 Bd)
  • Suitable for analog and digital data
  • No licence required
  • Compliance to RED (2014/53/EU), EN 300220
  • FCC and Canada approvals


  • Remote control systems
  • Industrial applications
  • Telemetry systems
  • Alarms
  • Security systems

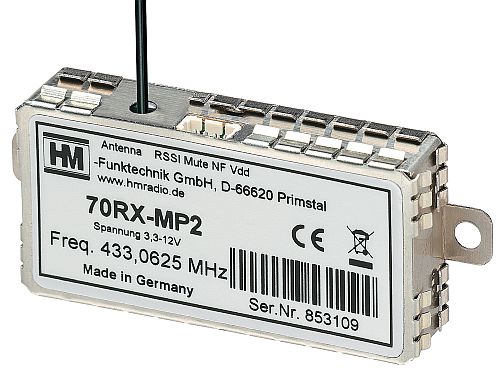

Receiver 70RX-MP2 with whip antenna
Receiver 70RX-MP2 antenna

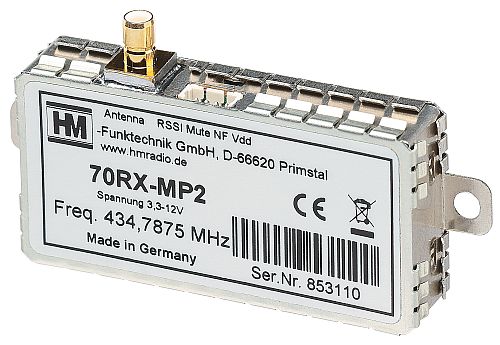

Receiver 70RX-MP2 with SMB socket
Receiver 70RX-MP2 socket


Communication Simplex
Frequency range 433.075 - 434.775 MHz (12.5 / 25 kHz raster)
  optional 406 - 476 MHz (other frequencies on request)
Number of channels Single channel (fix)
Receiver mode Double Superhet
Sensitivity at least  -121 dBm  / 12 dB SINAD (CCITT-filter)
Selectivity 15 kHz channel bandwidth
NF-Output 0,8 VPP    not inverted
Data rate DC - 5 kHz (9600 Bd)
Temperature range -25°C . . . +75°C
Supply voltage 4.8 - 11.5 V    (max. 4.6 - 12.0 V)
Supply current 26 mA (± 2 mA)
Dimensions 49.2 x 24.9 x 9.7 mm  (with lashes 60.0 x 24.9 x 9.7 mm)
Weight 23 g
Material stainless steel with M3 mounting lashes
Antenna λ/4 - Whip antenna (Teflon)     optional SMA, SMB or MCX
Outputs Mute, RSSI
Approvals RED (EN 300220)  for  Europe (433.0625 - 434.7875 MHz)
  FCC (Part 15) for  USA (420 - 510 MHz)
  CAN  for  Canada (420 - 430 / 450 - 470 MHz)

Data sheets 70RX-MP2 (single channel)
