Narrow band single channel power transmitter 70TX-D

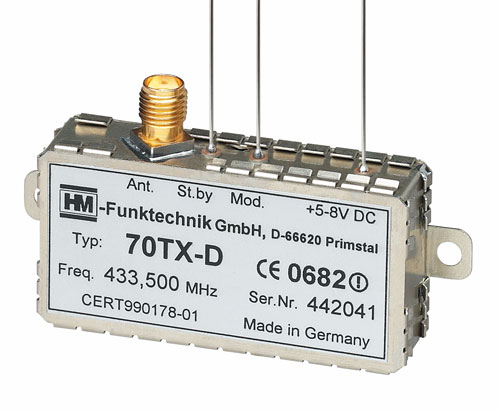

The UHF mini transmitter 70TX-D is one of the smallest crystal stabilized transmitter modules in the 500mW class. A wide voltage range and its low power consumption combined with the small size makes the module ideal for portable and mobile applications.
By the interesting combination of reliable technologies it was possible to design a product, putting together the advantages of frequency stable crystal oscillators and the synthesizer concept in a very small size.
The 70TX-D transmitter is a single channel, crystal stabilized solution, available for the frequency range from 410 to 510 MHz, mainly in the european 70cm ISM band from 433.100 to 434.775 MHz.
The integrated standby function allows a very short startup time if needed.
The combination with our receiver-modules 70RX-M1 or 70RX-S1 offers the user a perfect radio system with very long distance communication at simplex or half-duplex. Together with our remote control unit FSM24 you can reach 4500 m and more at free sight.
Features
- Narrow band single channel transmitter
- with professional licence EN 300113
- Up to 500mW output power
- Typical range 5000m
- Very small size
- Less current consumption
- Data rate DC - 5kHz (up to 9600 Bd)
- Analog and digital data
- Compliance to R&TTE ( 99/5/EG )
- FCC Part 90 approval
Applications
- Remote control systems
- Industrial applications
- Telemetry systems
- Alarms
- Security systems
 |
Specifications
| Communication | Simplex |
| Frequency range | 433.100 - 434.750 MHz 25 kHz step |
| optional 410 - 510 MHz | |
| Number of channels | single channel (fix) |
| Output power | 350 mW / 25.4 dBm at 50 Ω / 5V |
| 500 mW / 27.0 dBm at 50 Ω / 6V | |
| Modulation | FM narrowband (analog and digital) |
| Data input level | 5 VPP (TTL) |
| Deviation | ± 2.5 kHz (± 300 Hz) at sinus with 5 VPP |
| Data rate | DC - 5 kHz ( up to 9600 Bd ) |
| Temperature range | -25°C . . . +75°C |
| Supply Voltage | 5 - 8 V (max. 4.6 - 12.0 V, 8-12 V only with low duty cycle) |
| Supply Current | Standby: 20 mA (± 3 mA) |
| Transmit: 300 mA (± 30 mA) at 5V 340 mA (± 30 mA) at 6V | |
| Dimensions | 49.7 x 25 x 12.5 mm (with lashes 59.7 x 25 x 12.5 mm) |
| Weight | 20 g |
| Material | stainless steel with M3 mounting lashes |
| Antenna connector | SMA optional SMB- or MCX |
| Approvals | R&TTE (EN 300220, EN300 113) for Europe (433.0625 - 434.7875 MHz) |
FCC Part90 (460 - 470MHz) |
